JSCalendarContrib

Mishoo JSCalendar date and time picker, packaged for use by plugins, skins and add-ons

Summary of Contents

This module packages the Mishoo JSCalendar Javascript in a form suitable for use with Foswiki.

Detailed Documentation

Read the Mishoo documentation or visit the demo page for detailed information on using the calendar widget.

This package also includes a small Perl module to make using the calendar easier from Foswiki plugins. This module includes the functions:

Foswiki::Contrib::JSCalendarContrib::renderDateForEdit($name, $value, $format [, \%cssClass]) -> $html

This is the simplest way to use calendars from a plugin.
  • $name is the name of the CGI parameter for the calendar (it should be unique),
  • $value is the current value of the parameter (may be undef)
  • $format is the format to use (optional; the default is set in configure). The HTML returned will display a date field and a drop-down calendar.
  • \%options is an optional hash containing base options for the textfield.
Example:
use Foswiki::Contrib::JSCalendarContrib ();
...
my $fromDate = Foswiki::Contrib::JSCalendarContrib::renderDateForEdit(
   'from', '1 April 1999');
my $toDate = Foswiki::Contrib::JSCalendarContrib::renderDateForEdit(
   'to', undef, '%Y');

Foswiki::Contrib::JSCalendarContrib::addHEAD($setup)

This function will automatically add the headers for the calendar to the page being rendered. It's intended for use when you want more control over the formatting of your calendars than renderDateForEdit affords. $setup is the name of the calendar setup module; it can either be omitted, in which case the method described in the Mishoo documentation can be used to create calendars, or it can be 'foswiki', in which case a Javascript helper function called 'showCalendar' is added that simplifies using calendars to set a value in a text field. For example, say we wanted to display the date with the calendar icon before the text field, using the format %Y %b %e
# Add styles and javascript for the calendar
use Foswiki::Contrib::JSCalendarContrib ();
...

sub commonTagsHandler {
  ....
  # Enable 'showCalendar'
  Foswiki::Contrib::JSCalendarContrib::addHEAD( 'foswiki' );

  my $cal = CGI::image_button(
      -name => 'img_datefield',
      -onclick =>
       "return showCalendar('id_datefield','%Y %b %e')",
      -src=> Foswiki::Func::getPubUrlPath() . '/' .
             $Foswiki::cfg{SystemWebName} .
             '/JSCalendarContrib/img.gif',
      -alt => 'Calendar',
      -align => 'middle' )
    . CGI::textfield(
      { name => 'date', id => "id_datefield" });
  ....
}
The first parameter to showCalendar is the id of the textfield, and the second parameter is the date format. Default format is '%e %B %Y'.

All available date specifiers:
%a - abbreviated weekday name
%A - full weekday name
%b - abbreviated month name
%B - full month name
%C - century number
%d - the day of the month ( 00 .. 31 )
%e - the day of the month ( 0 .. 31 )
%H - hour ( 00 .. 23 )
%I - hour ( 01 .. 12 )
%j - day of the year ( 000 .. 366 )
%k - hour ( 0 .. 23 )
%l - hour ( 1 .. 12 )
%m - month ( 01 .. 12 )
%M - minute ( 00 .. 59 )
%n - a newline character
%p - "PM" or "AM"
%P - "pm" or "am"
%S - second ( 00 .. 59 )
%s - number of seconds since Epoch (since Jan 01 1970 00:00:00 UTC)
%t - a tab character
%U, %W, %V - the week number
   The week 01 is the week that has the Thursday in the current year,
   which is equivalent to the week that contains the fourth day of January.
   Weeks start on Monday.
%u - the day of the week ( 1 .. 7, 1 = MON )
%w - the day of the week ( 0 .. 6, 0 = SUN )
%y - year without the century ( 00 .. 99 )
%Y - year including the century ( ex. 1979 )
%% - a literal % character

addHEAD can be called from commonTagsHandler for adding the header to all pages, or from beforeEditHandler just for edit pages etc.

An alternative to commonTagsHandler is postRenderingHandler which is more efficient since it is called less often.

Using the Calendar for picking date and time

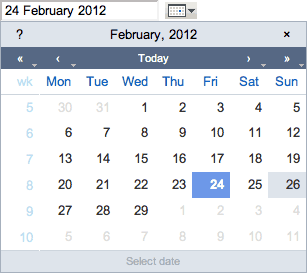

The calendar is able to display a time-picker, in addition to the default date-picker, depending on the optional date format passed.

Pick days and time Pick days only
When the passed format descriptions includes hours, minutes or am or pm specifiers.
For instance: %H, %I, %k, %l, %M, %p, %P
All other cases
A time format is set in JSCALENDARCONTRIB_FORMAT. For instance:
Set JSCALENDARCONTRIB_FORMAT = %Y-%m-%d %H:%M:%S

Using the Calendar in forms

The date picker is shown automatically in DataForms when a date field is specified.

You can also use the calendar directly in your own hand-built forms.

Preparation

Just add this inline in the topic text:
%INCLUDE{"%SYSTEMWEB%.JSCalendarContribInline"}%
You may pass language and style options:
%INCLUDE{"%SYSTEMWEB%.JSCalendarContribInline" lang="nl" style="blue"}%
The default lang is en, the default style is large.

Displaying the calendar

To display a calendar icon next to a text input field:
<input type="text" class="foswikiInputField" id="cal_val_here" />
<img src="%PUBURL%/%SYSTEMWEB%/JSCalendarContrib/img.gif"\
  class="foswikiButton foswikiEditFormCalendarButton" \
  onclick="return showCalendar('cal_val_here','%e %B %Y %H:%M:%S ')" />
If the contrib is installed, you will see such a field here:

Installation Instructions

You do not need to install anything in the browser to use this extension. The following instructions are for the administrator who installs the extension on the server.

Open configure, and open the "Extensions" section. Use "Find More Extensions" to get a list of available extensions. Select "Install".

If you have any problems, or if the extension isn't available in configure, then you can still install manually from the command-line. See http://foswiki.org/Support/ManuallyInstallingExtensions for more help.

Customizing the appearance of the calendar

  • An administrator can customize the default appearance of the calendar using the configure interface to set the style and language options.
  • Users can customize the appearance of the calendar, overriding the administrator's choices, either system-wide (at SitePreferences), by web (at the WebPreferences topic), and even or per-topic basis. To do that they need to define the following settings:
    Setting Default value
    JSCALENDARCONTRIB_FORMAT %e %b %Y
    JSCALENDARCONTRIB_STYLE large
    JSCALENDARCONTRIB_LANG en

Contrib Info

Another great Foswiki extension from the wikiringlogo20x20.png WikiRing - working together to improve your wiki experience!

Change History:
14 Jun 2015 (1.55) Released with Foswiki 2.0, copyright updates, minor doc updates.
18 Dec 2014 (1.54) Foswikitask:Item13099: fixed img button of date formfield, Delegated the PUBURL implementation to the store
Foswikitask:Item12583: Convert back to simple decimal version strings.
13 Mar 2014 Foswikitask:Item12070: fixed too many calls to expandTML
28 Nov 2012 Foswikitask:Item12213: Button icon made transparent. Foswikitask:Item11267: Convert to perl version strings.
06 Apr 2012 Foswikitask:Item11568: Re-introduce style options and updated default calendar style.
Foswikitask:Item11701: Fallback to numbers for month if month name is expected, but numbers are entered.
29 Nov 2011 Revert changes since 30 July. Bump release to 1.5.
30 Jul 2011 Arthur Clemens: Several bug fixes related to using seconds.
11 Apr 2011 Version released with Foswiki 1.1.3. Only a minor change related to how the plugin is being upgraded
31 Jul 2010 Foswikitask:Item9415 - Documentation updates
03 Apr 2010 Added possibility of local configuration of the calendar (Foswiki:Main.AntonioTerceiro).
01 Apr 2010 Calendar displays the built-in Time-Picker if the optional format string contains time format specifiers (Foswiki:Main.RaulFRodriguez)
09 Jan 2010 Adding the Config.spec file with the 3 settings so that people do not have to manually create the file.
20 Sep 2009 Small documentation update in connection with release of Foswiki 1.0.7
16 Dec 2008 Foswiki version
10 Sep 2008 Bugs:Item5991 Applied patch to fix rendering on IE7 .
06 Sep 2007 Bugs:Item4030 Added doc for using the calendar in user forms
13603 Bugs:Item2982 cleaned up the interface to the contrib, re-added a date rendering function with a more generic interface
11594 Allow format to be configured.
11415 Add a renderFormFieldForEditHandler so other plugins can forward to this handler to add the date field to the DataForms. (TWiki:Main.ThomasWeigert)
10247 Bugs:Item2054 put the calendar at z-index 2000, way above pattern skin divs.
6634 Bugs:Item453 removed EditTablePlugins private copy of the Mishoo JS calendar, and made sure it works with JSCalendarContrib. Improved the documentation of the JSCalendar while I was there.
6626 Bugs:Item468 updated docs for Dakar release
5048 Cairo readiness
5039 Split from SharedCode
27 Dec 2005 updated to calendar version 1.0; set style for Safari to win2k-1
14 Aug 2004 Separated out from SharedCode module
Dependencies:
NameVersionDescription
Foswiki::Plugins::JQueryPlugin>=6.00Required.


Related Topics: SitePreferences
Topic revision: r1 - 04 Jul 2015, UnknownUser
